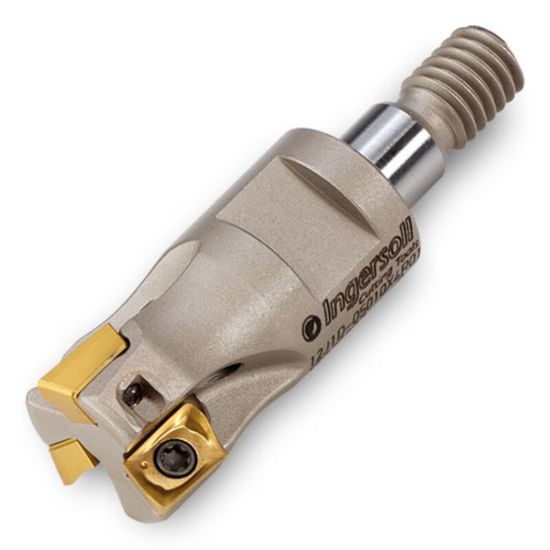

Picture of INGERSOLL 12J1D-05010X4R01 Milling Cutter 90.0° 0.500 Screw M06 3 Flute Coolant 0.22 Max DOC

INGERSOLL 12J1D-05010X4R01 Milling Cutter 90.0° 0.500 Screw M06 3 Flute Coolant 0.22 Max DOC

ANSI: 12J1D-05010X4R01

ISO: 12J1D-05010X4R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018977
Delivery date: 3-5 days
$259.47
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.2200
Machine Side Connection Type Screw On
Insert Size Ic 6
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Size M06
Cut Dia Min 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style AO
Max Ramp Angle 6.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
