  • INGERSOLL 12J1D-05009S4R01 Milling Cutter 90.0° 0.500 Cylindrical 0.5000 3 Flute Coolant 0.22 Max DOC 2.750 OAL

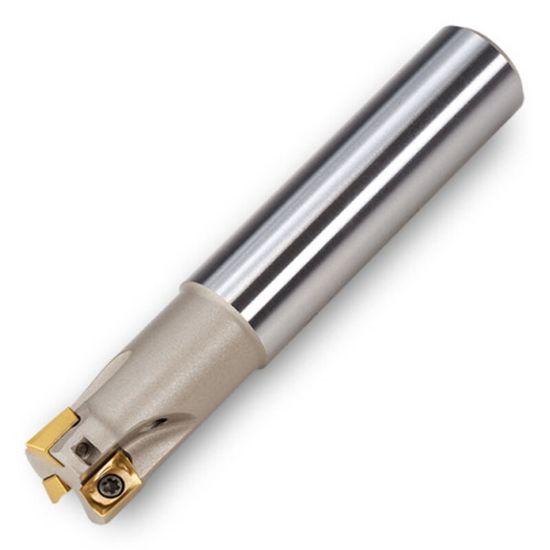

Picture of INGERSOLL 12J1D-05009S4R01 Milling Cutter 90.0° 0.500 Cylindrical 0.5000 3 Flute Coolant 0.22 Max DOC 2.750 OAL

INGERSOLL 12J1D-05009S4R01 Milling Cutter 90.0° 0.500 Cylindrical 0.5000 3 Flute Coolant 0.22 Max DOC 2.750 OAL

ANSI: 12J1D-05009S4R01

ISO: 12J1D-05009S4R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018964
Delivery date: 3-5 days
$264.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Slot Milling, Ramp Milling, Side Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Cylindrical
Cut Dia Min 0.5000 12.70MM - 1/2
Overall Len 2.7500 69.85MM
Flutes/Inserts 3
Depth Of Cut Max 0.2200
Insert Size Ic 6
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Max Ramp Angle 6.00°
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
