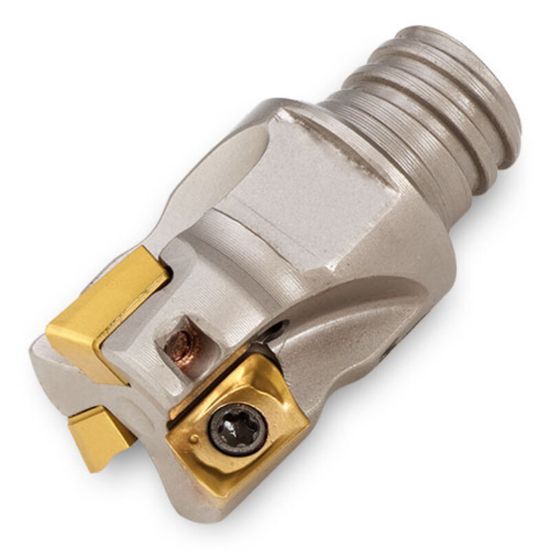

Picture of INGERSOLL 12J1D-05006T8R02 Milling Cutter 90.0° 0.500 T08 3 Flute Coolant 0.22 Max DOC

INGERSOLL 12J1D-05006T8R02 Milling Cutter 90.0° 0.500 T08 3 Flute Coolant 0.22 Max DOC

ANSI: 12J1D-05006T8R02

ISO: 12J1D-05006T8R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040803
Delivery date: 3-5 days
$257.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.5000 12.70MM - 1/2
Insert Size Ic 6
Depth Of Cut Max 0.2200
Machine Side Connection Type Screw On
Machine Side Connection Size T08
Flutes/Inserts 3
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 6.00°
Insert Style AO
