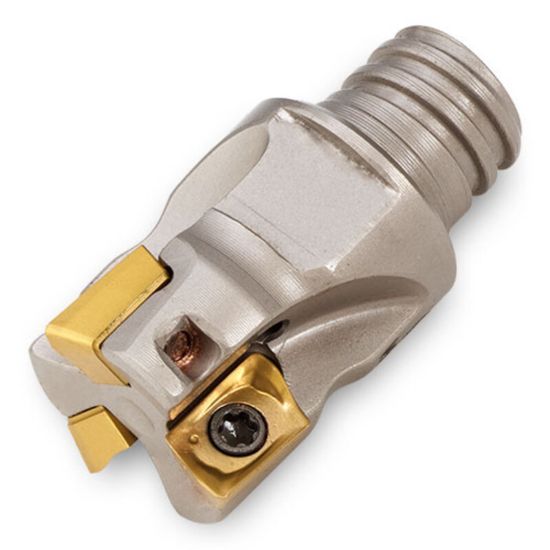

Picture of INGERSOLL 12J1D-05006T8R01 Milling Cutter 90.0° 0.500 T08 2 Flute Coolant 0.22 Max DOC

INGERSOLL 12J1D-05006T8R01 Milling Cutter 90.0° 0.500 T08 2 Flute Coolant 0.22 Max DOC

ANSI: 12J1D-05006T8R01

ISO: 12J1D-05006T8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040804
Delivery date: 3-5 days
$264.13
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Insert/Tool Tool
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 6
Flutes/Inserts 2
Depth Of Cut Max 0.2200
Machine Side Connection Size T08
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Type Screw On
Cutter Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Max Ramp Angle 6.00°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
