  • INGERSOLL 12J1D-04009S4R01 Milling Cutter 90.0° 0.490 Cylindrical 0.5000 2 Flute Coolant 0.22 Max DOC 2.750 OAL

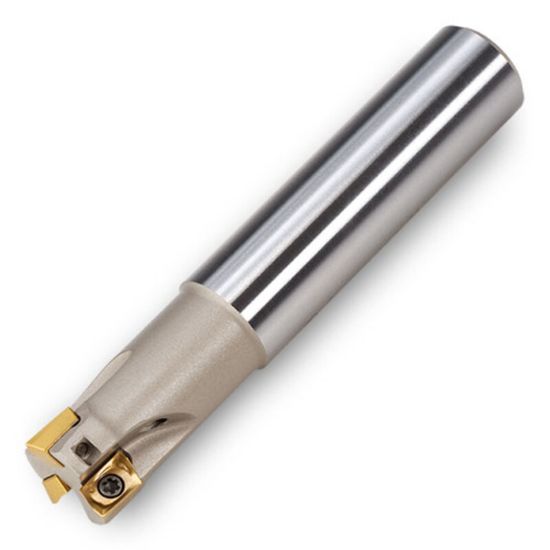

Picture of INGERSOLL 12J1D-04009S4R01 Milling Cutter 90.0° 0.490 Cylindrical 0.5000 2 Flute Coolant 0.22 Max DOC 2.750 OAL

INGERSOLL 12J1D-04009S4R01 Milling Cutter 90.0° 0.490 Cylindrical 0.5000 2 Flute Coolant 0.22 Max DOC 2.750 OAL

ANSI: 12J1D-04009S4R01

ISO: 12J1D-04009S4R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018962
Delivery date: 3-5 days
$257.60
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Tool Material Steel
Overall Len 2.7500 69.85MM
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 0.4900 12.45MM
Cut Dia Min 0.4900 12.45MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2200
Insert Size Ic 6
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 6.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
