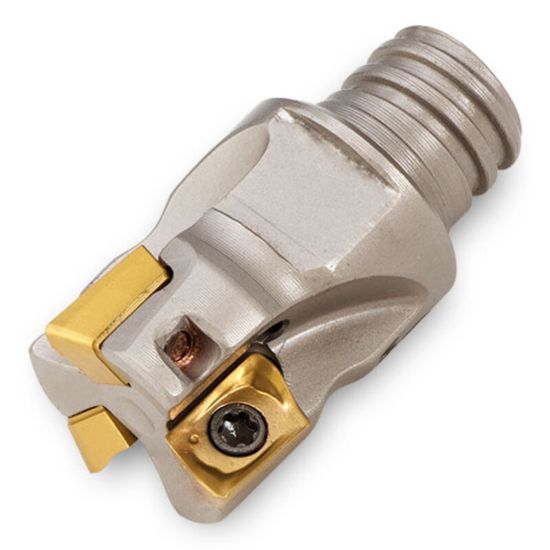

Picture of INGERSOLL 12J1D-03006T6R01 Milling Cutter 90.0° 0.375 T06 2 Flute Coolant 0.22 Max DOC

INGERSOLL 12J1D-03006T6R01 Milling Cutter 90.0° 0.375 T06 2 Flute Coolant 0.22 Max DOC

ANSI: 12J1D-03006T6R01

ISO: 12J1D-03006T6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040802
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Slot Milling, Pocket Milling, Face Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2200
Cut Dia Min 0.3750 9.53MM - 3/8
Machine Side Connection Type Screw On
Cutter Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size T06
Tool Material Steel
Insert Size Ic 6
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 9.60°
Insert Style AO
