  • INGERSOLL 12J1D-0300587R01 Milling Cutter 90.0° 0.375 Cylindrical 0.5000 2 Flute 0.22 Max DOC 2.500 OAL

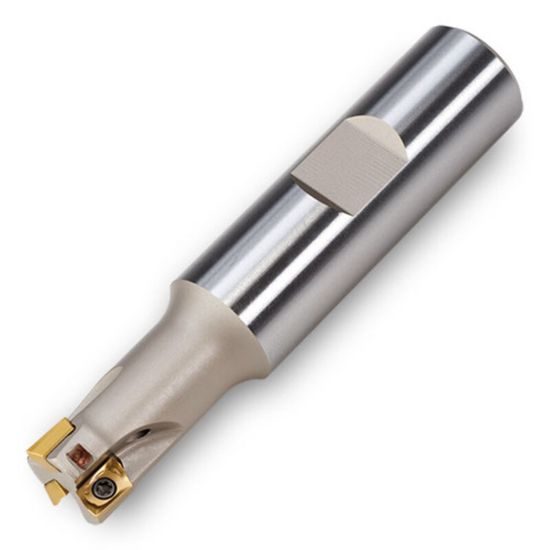

Picture of INGERSOLL 12J1D-0300587R01 Milling Cutter 90.0° 0.375 Cylindrical 0.5000 2 Flute 0.22 Max DOC 2.500 OAL

INGERSOLL 12J1D-0300587R01 Milling Cutter 90.0° 0.375 Cylindrical 0.5000 2 Flute 0.22 Max DOC 2.500 OAL

ANSI: 12J1D-0300587R01

ISO: 12J1D-0300587R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018959
Delivery date: 3-5 days
$247.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2200
Cut Dia Min 0.3750 9.53MM - 3/8
Machine Side Connection Type Cylindrical
Insert Size Ic 6
Flutes/Inserts 2
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Cutter Dia 0.3750 9.53MM - 3/8
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru No
Max Ramp Angle 9.60°
