  • INGERSOLL 12J1B-2002281R01 Milling Cutter 90.0° 2.000 Cylindrical 1.2500 5 Flute Coolant 0.6 Max DOC 4.500 OAL

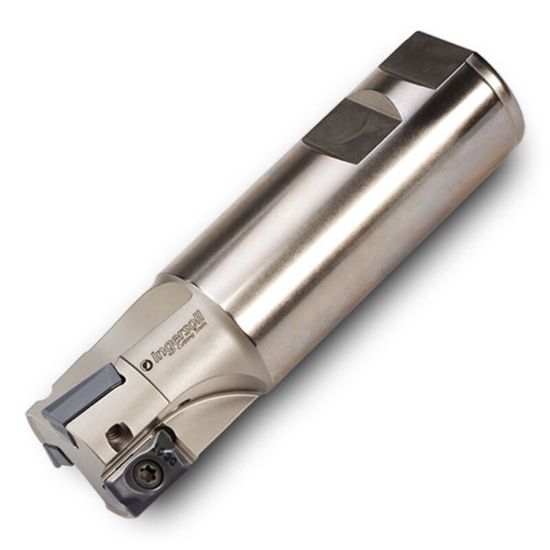

Picture of INGERSOLL 12J1B-2002281R01 Milling Cutter 90.0° 2.000 Cylindrical 1.2500 5 Flute Coolant 0.6 Max DOC 4.500 OAL

INGERSOLL 12J1B-2002281R01 Milling Cutter 90.0° 2.000 Cylindrical 1.2500 5 Flute Coolant 0.6 Max DOC 4.500 OAL

ANSI: 12J1B-2002281R01

ISO: 12J1B-2002281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001327
Delivery date: 3-5 days
$575.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 5
Insert Size Ic 16
Depth Of Cut Max 0.6000
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Max Ramp Angle 2.10°
Coolant Thru Yes
