  • INGERSOLL 12J1B-1504281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.6 Max DOC 6.500 OAL

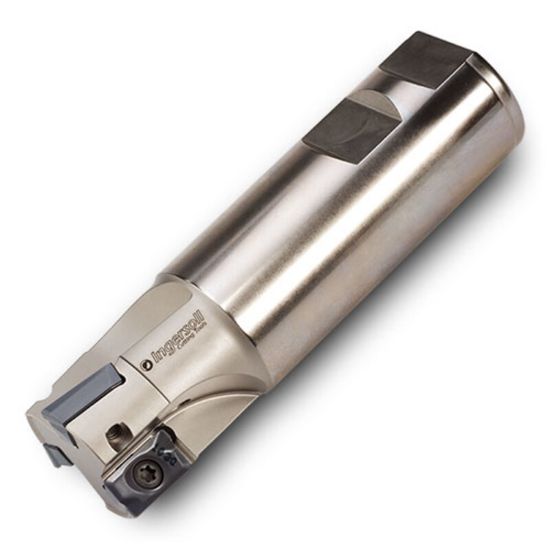

Picture of INGERSOLL 12J1B-1504281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.6 Max DOC 6.500 OAL

INGERSOLL 12J1B-1504281R01 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.6 Max DOC 6.500 OAL

ANSI: 12J1B-1504281R01

ISO: 12J1B-1504281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3002408
Delivery date: 3-5 days
$469.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
Flutes/Inserts 3
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.6000
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style AP
Coolant Thru Yes
Max Ramp Angle 3.00°
Insert Shape/Cutter Pocket Shape Parallelogram
