  • INGERSOLL 12J1B-1502281R02 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.6 Max DOC 4.500 OAL

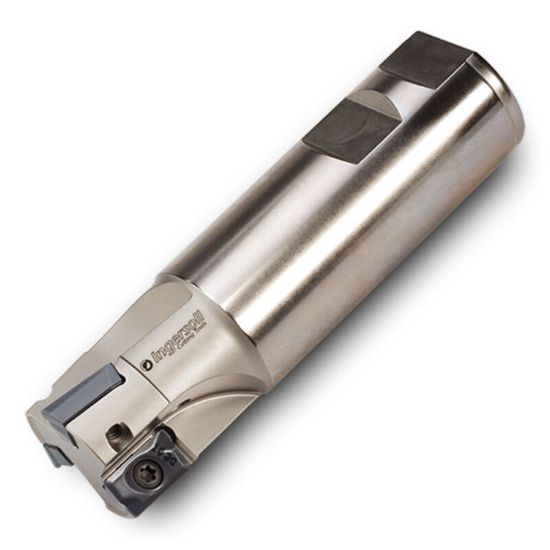

Picture of INGERSOLL 12J1B-1502281R02 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.6 Max DOC 4.500 OAL

INGERSOLL 12J1B-1502281R02 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 3 Flute Coolant 0.6 Max DOC 4.500 OAL

ANSI: 12J1B-1502281R02

ISO: 12J1B-1502281R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3002180
Delivery date: 3-5 days
$415.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Ramp Milling, Slot Milling, Side Milling
Package Size 1
Shipping State Illinois
Insert Type Positive
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16
Depth Of Cut Max 0.6000
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 3.00°
Insert Style AP
