  • INGERSOLL 12J1B-1206281R02 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 2 Flute Coolant 0.6 Max DOC 8.500 OAL

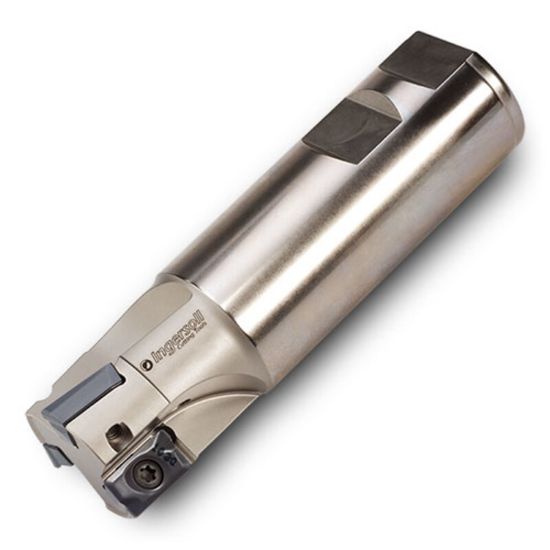

Picture of INGERSOLL 12J1B-1206281R02 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 2 Flute Coolant 0.6 Max DOC 8.500 OAL

INGERSOLL 12J1B-1206281R02 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 2 Flute Coolant 0.6 Max DOC 8.500 OAL

ANSI: 12J1B-1206281R02

ISO: 12J1B-1206281R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3003935
Delivery date: 3-5 days
$474.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16
Depth Of Cut Max 0.6000
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Overall Len 8.5000 215.90MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 3.90°
Coolant Thru Yes
Insert Style AP
