  • INGERSOLL 12J1B-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.6 Max DOC 6.500 OAL

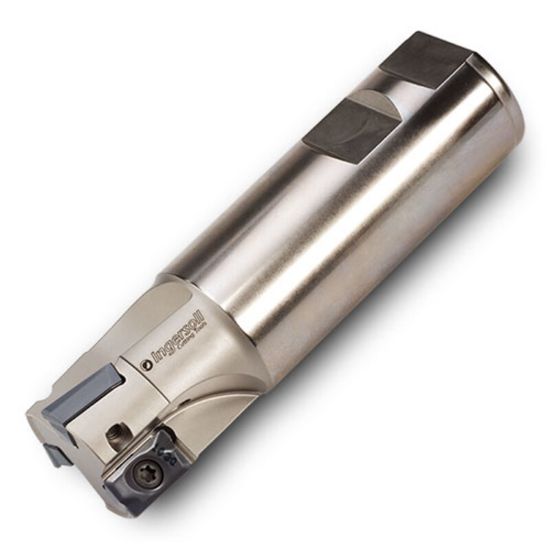

Picture of INGERSOLL 12J1B-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.6 Max DOC 6.500 OAL

INGERSOLL 12J1B-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.6 Max DOC 6.500 OAL

ANSI: 12J1B-1204281R01

ISO: 12J1B-1204281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001701
Delivery date: 3-5 days
$415.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2500 31.75MM
Tool Material Steel
Overall Len 6.5000 165.10MM
Depth Of Cut Max 0.6000
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 3.90°
