  • INGERSOLL 12J1B-1003780R02 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 5.990 OAL

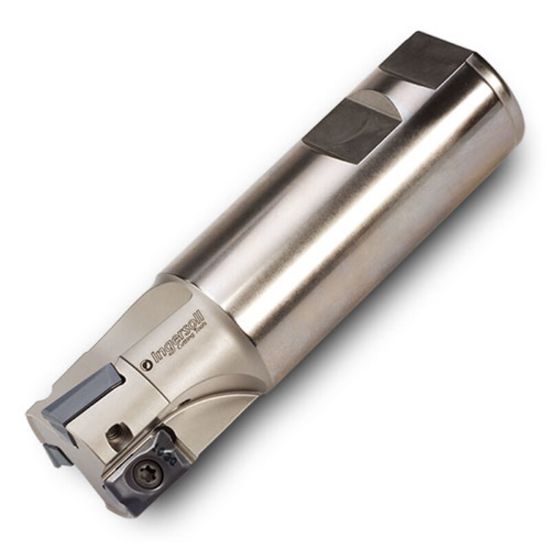

Picture of INGERSOLL 12J1B-1003780R02 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 5.990 OAL

INGERSOLL 12J1B-1003780R02 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 5.990 OAL

ANSI: 12J1B-1003780R02

ISO: 12J1B-1003780R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3002972
Delivery date: 3-5 days
$433.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Overall Len 5.9900 152.15MM
Flutes/Inserts 2
Depth Of Cut Max 0.6000
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Max Ramp Angle 5.40°
