  • INGERSOLL 12J1B-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 6.000 OAL

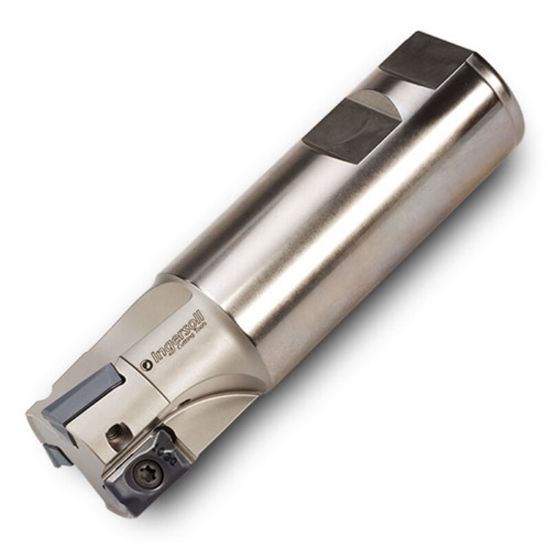

Picture of INGERSOLL 12J1B-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 6.000 OAL

INGERSOLL 12J1B-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 6.000 OAL

ANSI: 12J1B-1003780R01

ISO: 12J1B-1003780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001700
Delivery date: 3-5 days
$376.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Face Milling, Ramp Milling, Slot Milling, Side Milling, Pocket Milling
Package Size 1
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Depth Of Cut Max 0.6000
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Style AP
Coolant Thru Yes
Max Ramp Angle 5.40°
Insert Shape/Cutter Pocket Shape Parallelogram
