  • INGERSOLL 12J1B-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 4.000 OAL

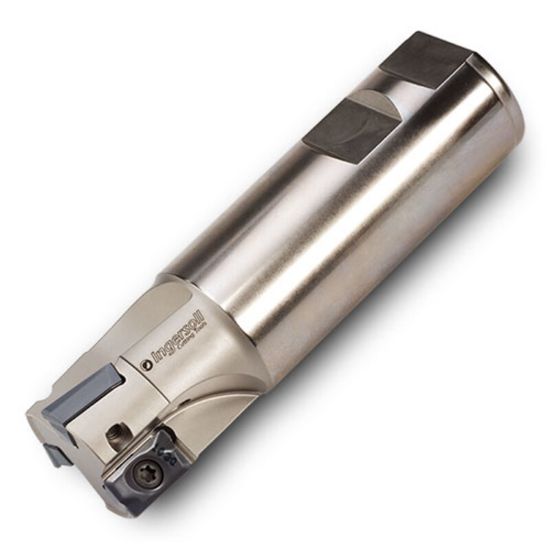

Picture of INGERSOLL 12J1B-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 4.000 OAL

INGERSOLL 12J1B-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 4.000 OAL

ANSI: 12J1B-1001780R01

ISO: 12J1B-1001780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001324
Delivery date: 3-5 days
$325.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Shipping State Illinois
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 2
Depth Of Cut Max 0.6000
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Max Ramp Angle 5.40°
