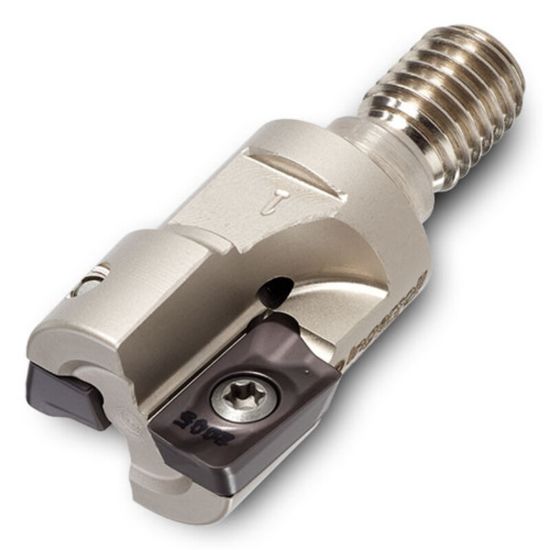

INGERSOLL 12J1B-10012X7R01 Milling Cutter 90.0° 1.000 Screw M12 2 Flute Coolant 0.6 Max DOC

ANSI: 12J1B-10012X7R01

ISO: 12J1B-10012X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3016702
Delivery date: 3-5 days
$327.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16
Flutes/Inserts 2
Depth Of Cut Max 0.6000
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Max Ramp Angle 5.40°
