  • INGERSOLL 12J1B-0901780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 4.000 OAL

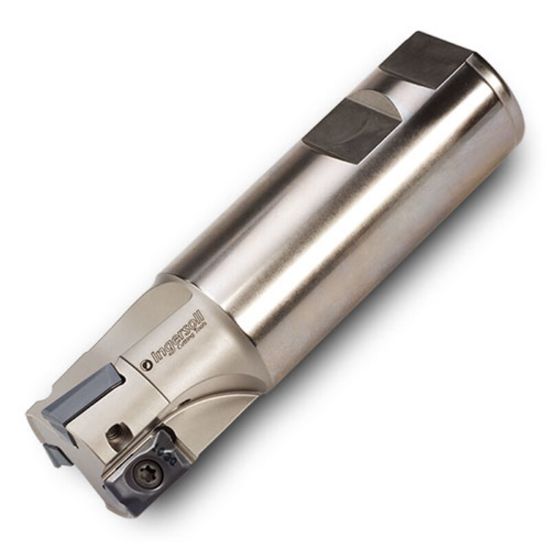

Picture of INGERSOLL 12J1B-0901780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 4.000 OAL

INGERSOLL 12J1B-0901780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.6 Max DOC 4.000 OAL

ANSI: 12J1B-0901780R01

ISO: 12J1B-0901780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3001738
Delivery date: 3-5 days
$325.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Side Milling, Slot Milling
Insert Type Positive
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Cut Dia Min 0.9700 24.64MM
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Depth Of Cut Max 0.6000
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Max Ramp Angle 5.50°
Insert Style AP
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
