  • INGERSOLL 12J1B-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 1 Flute Coolant 0.6 Max DOC 3.750 OAL

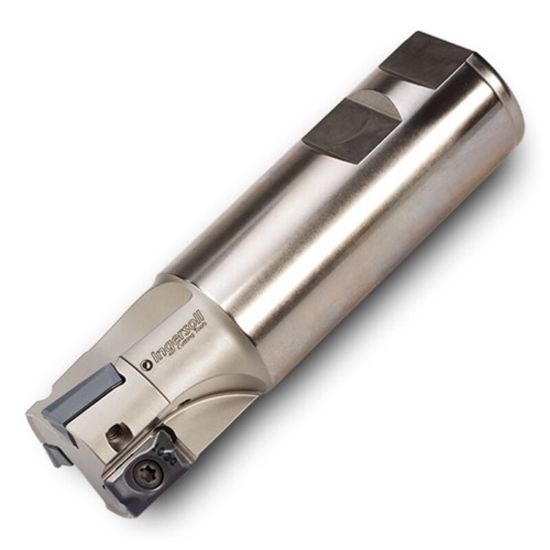

Picture of INGERSOLL 12J1B-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 1 Flute Coolant 0.6 Max DOC 3.750 OAL

INGERSOLL 12J1B-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 1 Flute Coolant 0.6 Max DOC 3.750 OAL

ANSI: 12J1B-0701784R01

ISO: 12J1B-0701784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3002633
Delivery date: 3-5 days
$280.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Side Milling, Face Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 1
Depth Of Cut Max 0.6000
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Insert Size Ic 16
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 7.20°
Coolant Thru Yes
