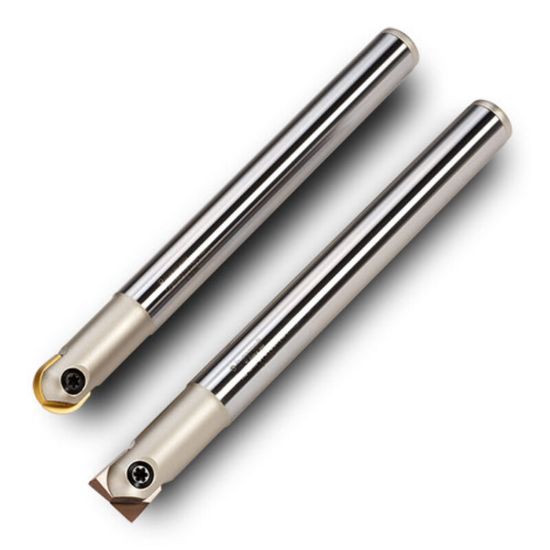

Picture of INGERSOLL 12A9S-12030S9R01 Milling Cutter 1.250 Cylindrical 1.2500 2 Flute Coolant 11.81 OAL

INGERSOLL 12A9S-12030S9R01 Milling Cutter 1.250 Cylindrical 1.2500 2 Flute Coolant 11.81 OAL

ANSI: 12A9S-12030S9R01

ISO: 12A9S-12030S9R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031012
Delivery date: 3-5 days
$584.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Finishing
Insert Type Neutral
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Overall Len 11.8100 299.97MM
Insert Size Ic 31
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Style NQ
Coolant Thru Yes
