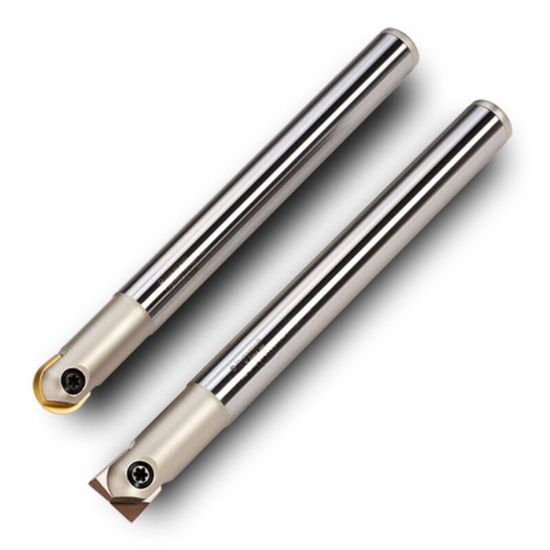

Picture of INGERSOLL 12A9R-10018S1R01 Milling Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 8.000 OAL

INGERSOLL 12A9R-10018S1R01 Milling Cutter 1.000 Cylindrical 1.0000 2 Flute Coolant 8.000 OAL

ANSI: 12A9R-10018S1R01

ISO: 12A9R-10018S1R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031011
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Neutral
Application Copy Milling, Profile Milling
Made In USA No
Shipping State Illinois
Package Size 1
Insert Application Semi Finishing, Finishing
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Overall Len 8.0000 203.20MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Ball
