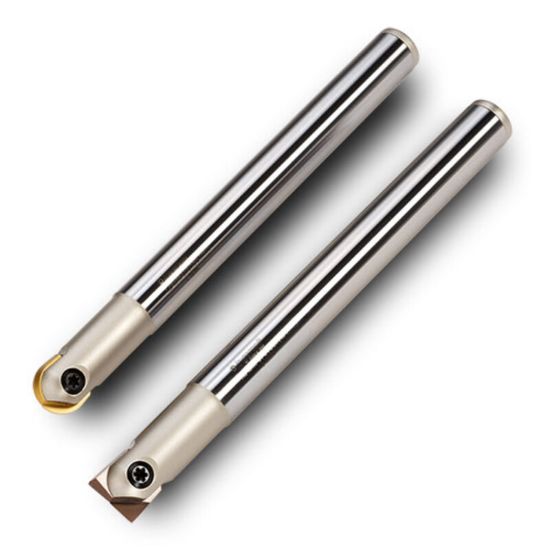

Picture of INGERSOLL 12A9K-06015S6R01 Milling Cutter 0.625 Cylindrical 0.6250 2 Flute Coolant 8.000 OAL

INGERSOLL 12A9K-06015S6R01 Milling Cutter 0.625 Cylindrical 0.6250 2 Flute Coolant 8.000 OAL

ANSI: 12A9K-06015S6R01

ISO: 12A9K-06015S6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031009
Delivery date: 3-5 days
$316.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Shipping State Illinois
Made In USA No
Package Size 1
Insert Type Neutral
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Cylindrical
Tool Material Steel
Flutes/Inserts 2
Machine Side Connection Size 0.6250 15.88MM
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 8.0000 203.20MM
Cut Dia Min 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Ball
