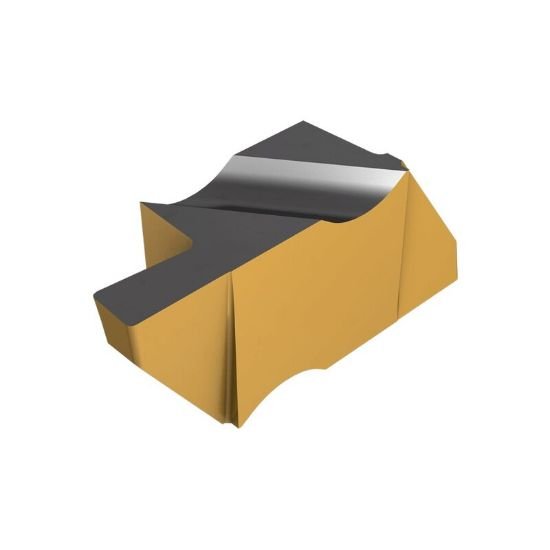

Picture of ING3078R IC808 Iscar 6405383 Grooving Insert 0.0780 1.98mm Wide 0.0075 0.19mm Radius

ING3078R IC808 Iscar 6405383 Grooving Insert 0.0780 1.98mm Wide 0.0075 0.19mm Radius

Part Number: ISC6405383 ISO: ING3078R IC808 ANSI:ING3078R IC808

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1083494
Vendor: Sussex Tool and Supply
$22.48
This product has a minimum quantity of 10
ISCAR 6405383 Top Notch Grooving Positive TiAlN + AlTiN + TiN A tough, submicron substrate with excellent chipping resistance, combined with a "SUMO TEC" PVD coating. Provides high wear resistance. Recommended for a very wide range of materials.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, High Temp
Coating TiAlN + AlTiN + TiN
Insert/Tool INSERT
Cut Type General Purpose
Corner Radius 0.0075 0.19MM
Insert Style TOP NOTCH
Insert Shape/Cutter Pocket Shape Top Notch
Grade IC808
Insert Type Positive
Insert Size Ic 3
Depth Of Cut Max 0.0940
Insert Type/Oriantation Top Notch
Cutting Width 0.0780 1.98MM
