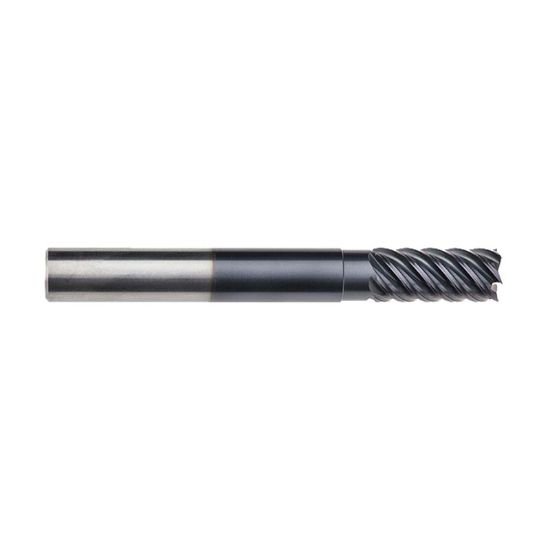

Imco 69559 Dia 6mm SH 0.2362 LOC 0.5906 OAL3.9370 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm Omega-6 Mill

Part Number: IMC69559 0.236 x 0.236 x 0.591 x 3.937 LBS = 2.520

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1234679
Vendor: Sussex Tool and Supply
$99.84
IMCO High Helix End Mill Carbide AlTiN Corner Radius 0.0197 0.50MM Standard Flute Flutes 6 Single End Omega-6 Mill Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 6
Tool Dia 0.2362 6.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.5906 15.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Inch/Metric Metric
Helix Angle 50
Center Cutting Center Cutting
Neck Length 2.5197 64.00MM
