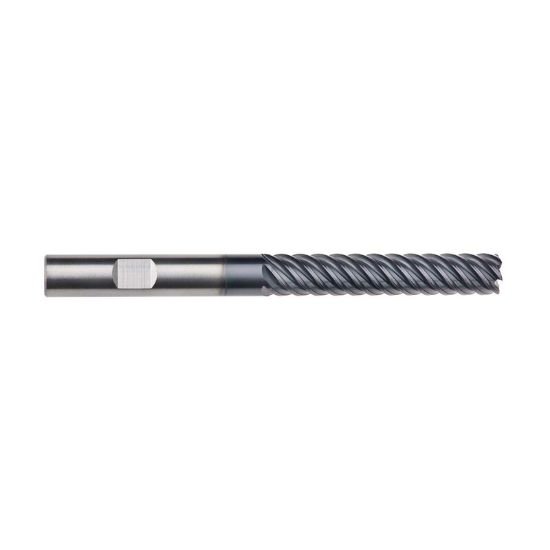

Picture of Imco 69237 Dia 1/2 SH 0.50 LOC 1.6250 OAL3.50 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp Omega-6 Mill

Imco 69237 Dia 1/2 SH 0.50 LOC 1.6250 OAL3.50 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp Omega-6 Mill

Part Number: IMC69237 0.500 x 0.500 x 1.625 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1234627
Vendor: Sussex Tool and Supply
$159.34
IMCO High Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 6 Single End Omega-6 Mill Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 6
Tool Dia 0.5000 12.70MM - 1/2
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 50
Center Cutting Center Cutting
