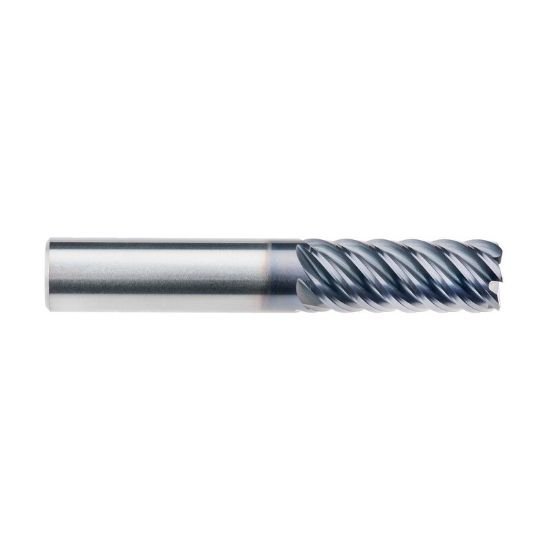

Picture of Imco 69161 Dia 10mm SH 0.3937 LOC 1.5748 OAL3.4646 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp Omega-6 Mill

Imco 69161 Dia 10mm SH 0.3937 LOC 1.5748 OAL3.4646 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp Omega-6 Mill

Part Number: IMC69161 0.394 x 0.394 x 1.575 x 3.465

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1234574
Vendor: Sussex Tool and Supply
$116.95
IMCO High Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 6 Single End Omega-6 Mill Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 3.4646 88.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 6
Tool Dia 0.3937 10.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.5748 40.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 50
Center Cutting Center Cutting
