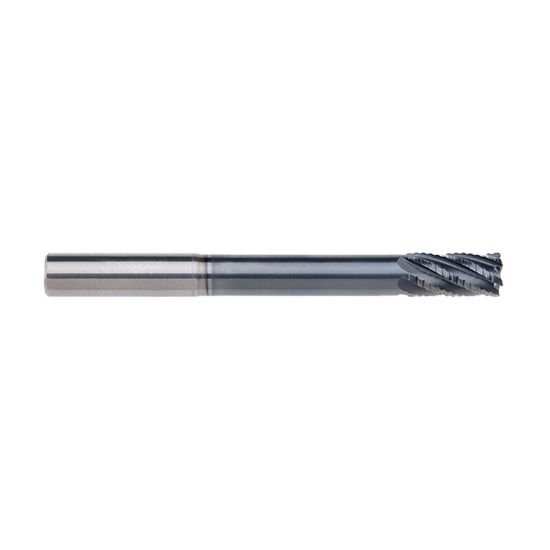

Imco 68823 Dia 3/4 SH 0.7500 LOC 1.50 OAL6.00 End Mill Standard Flute Standard Helix Carbide AlCrN Single End Corner Radius0.0300 0.76mm IncOneX End Mill

Part Number: IMC68823 0.750 x 0.750 x 1.500 x 6.000 LBS = 3.875
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1234456
$397.18

Description

IMCO Standard Helix End Mill Carbide AlCrN Corner Radius 0.0300 0.76MM Standard Flute Flutes 6 Single End INCONEX End Mill Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 6
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Neck Length 3.8750 98.43MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Inconel, Titanium
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
