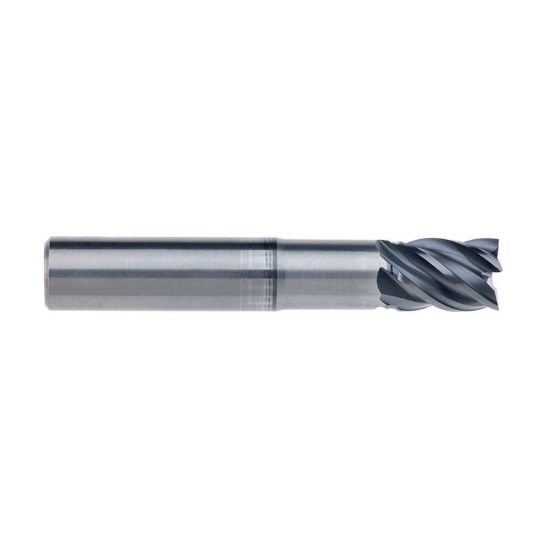

Imco 66735 Dia 12mm SH 0.4724 LOC 0.5906 OAL3.2677 End Mill Standard Flute Standard Helix Carbide AlCrN Single End Corner Radius0.0591 1.50mm enDURO Mill

Part Number: IMC66735 0.472 x 0.472 x 0.591 x 3.268 LBS = 1.496
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1233744
$121.54

Description

IMCO Standard Helix End Mill Carbide AlCrN Corner Radius 0.0591 1.50MM Standard Flute Flutes 5 Single End enDURO Mill Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.2677 83.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 5
Tool Dia 0.4724 12.00MM
Length Of Cut 0.5906 15.00MM
Neck Length 1.4961 38.00MM
Geometry & Angles
Corner Radius 0.0591 1.50MM
Helix Angle 40
Performance & Capacity
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
