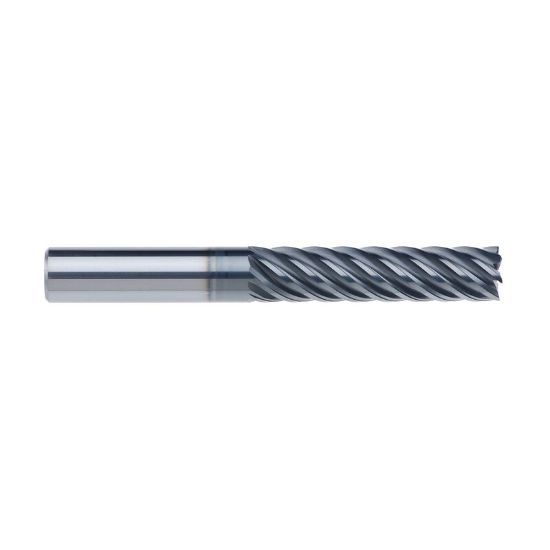

IMCO 66363 DIA 1 SH 1.00 LOC 4.1250 OAL 7.00 End Mill Standard Flute Standard Helix Carbide Single End Corner Radius 0.1250 3.18MM enDURO Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC66363
Delivery date: 3-5 days
$542.09

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Copy Milling, Face Milling, Profile Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
End Of Tool Shape Corner Radius
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
Overall Len 7.0000 177.80MM
Flutes/Inserts 7
Helix Angle 40°
Single/Double End Single End
Dimension Description 1.000 x 1.000 x 4.125 x 7.000
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Length Type Long
Cutter Dia 1.0000 25.40MM
Corner Radius 0.1250 3.18MM
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 4.1250 104.78MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Job Shop Yes
Aerospace Yes
