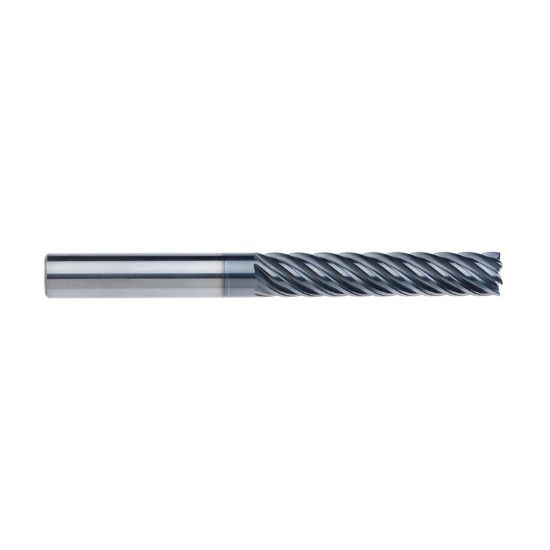

IMCO 66265 DIA 3/4 SH 0.7500 LOC 4.1250 OAL 7.00 End Mill Standard Flute Standard Helix Carbide Single End Corner Radius 0.1250 3.18MM enDURO Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC66265
Delivery date: 3-5 days
$386.29

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Overall Len 7.0000 177.80MM
Length Type Long
Helix Angle 40°
Corner Radius 0.1250 3.18MM
Length Of Cut 4.1250 104.78MM
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.750 x 0.750 x 4.125 x 7.000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 7
Single/Double End Single End
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
