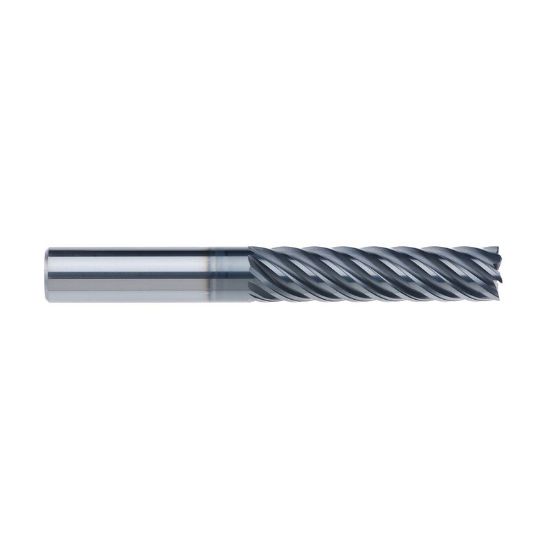

IMCO 66165 DIA 5/8 SH 0.6250 LOC 2.6250 OAL 5.00 End Mill Standard Flute Standard Helix Carbide Single End Corner Radius 0.1250 3.18MM enDURO Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC66165
Delivery date: 3-5 days
$216.22

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Slot Milling, Copy Milling, Face Milling, Profile Milling
Shipping State Ohio
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Length Type Long
Helix Angle 40°
Cutter Dia 0.6250 15.88MM - 5/8
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Dimension Description 0.625 x 0.625 x 2.625 x 5.000
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Corner Radius 0.1250 3.18MM
Cutter Style Carbide Bull Nose Finisher
Overall Len 5.0000 127.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 2.6250 66.68MM
Inch/Metric Inch
Machine Side Connection Size 0.6250 15.88MM
Flutes/Inserts 7
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
