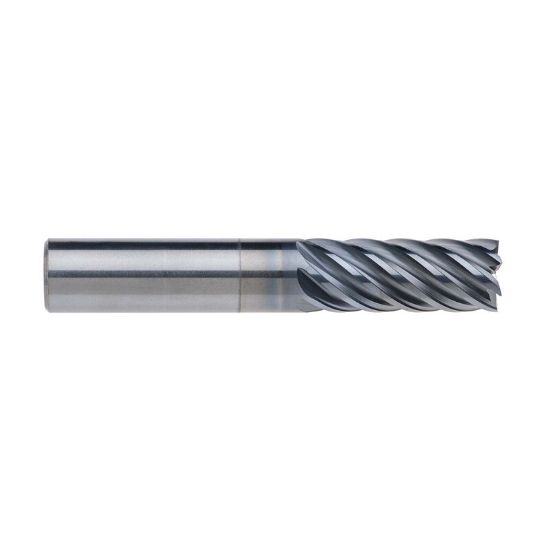

IMCO 66135 DIA 5/8 SH 0.6250 LOC 1.3750 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Single End Corner Radius 0.1250 3.18MM enDURO Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC66135
Delivery date: 3-5 days
$159.85

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Flutes/Inserts 7
Helix Angle 40°
Corner Radius 0.1250 3.18MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 3.5000 88.90MM
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.6250 15.88MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.625 x 0.625 x 1.375 x 3.500
Cutter Dia 0.6250 15.88MM - 5/8
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Length Of Cut 1.3750 34.93MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
