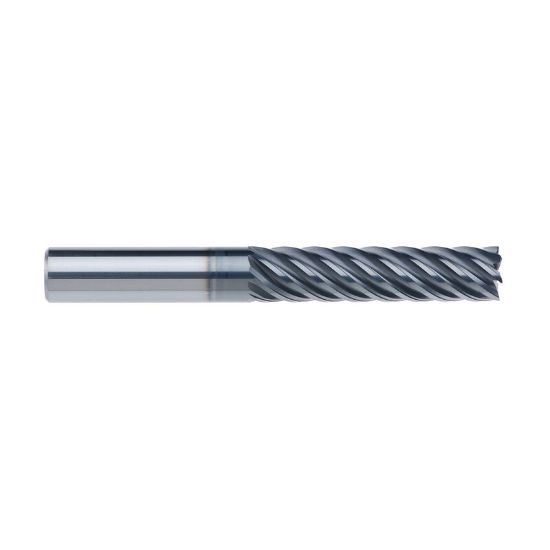

IMCO 66077 DIA 1/2 SH 0.50 LOC 2.1250 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Single End Corner Radius 0.1250 3.18MM enDURO Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC66077
Delivery date: 3-5 days
$128.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Copy Milling, Side Milling, Slot Milling
Made In USA Yes
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Flutes/Inserts 7
End Of Tool Shape Corner Radius
Single/Double End Single End
Overall Len 4.0000 101.60MM
Dimension Description 0.500 x 0.500 x 2.125 x 4.000
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Of Cut 2.1250 53.98MM
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.1250 3.18MM
Cutter Style Carbide Bull Nose Finisher
Helix Angle 40°
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
