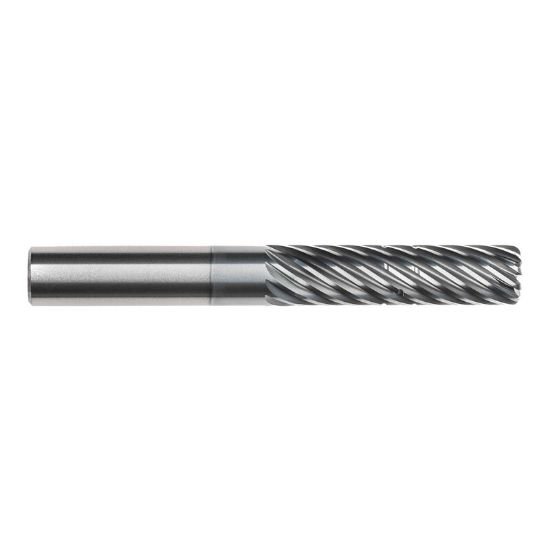

Imco 64467 Dia 20mm SH 0.7874 LOC 1.9685 OAL4.5276 End Mill Standard Flute Standard Helix Carbide AlCrN Single End Corner Radius0.1181 3.00mm Pow-R-Path Mill

Part Number: IMC64467 0.787 x 0.787 x 1.969 x 4.528
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1233047
$397.67

Description

IMCO Standard Helix End Mill Carbide AlCrN Corner Radius 0.1181 3.00MM Standard Flute Flutes 11 Single End Pow-R-Path Mill Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.5276 115.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 11
Tool Dia 0.7874 20.00MM
Length Of Cut 1.9685 50.00MM
Geometry & Angles
Corner Radius 0.1181 3.00MM
Helix Angle 34
Performance & Capacity
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
