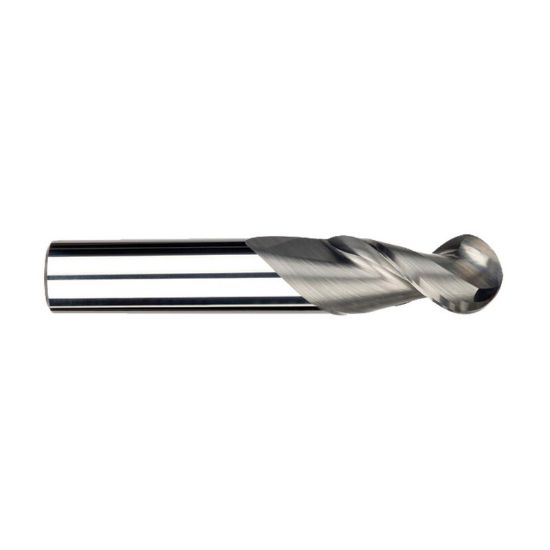

IMCO 62420 DIA 20MM SH 0.7874 LOC 1.4961 OAL 4.0945 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC62420
Delivery date: 3-5 days
$202.24

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Milling, Copy Milling, Side Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Inch/Metric Metric
Single/Double End Single End
Dimension Description 0.787 x 0.787 x 1.496 x 4.095
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
End Of Tool Shape Ball Nose
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 4.0945 104.00MM
Cutter Style Carbide Ball Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
