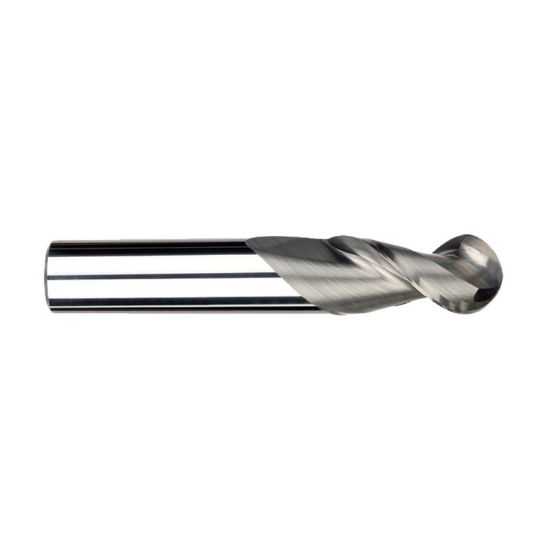

IMCO 62412 DIA 6MM SH 0.2362 LOC 0.6299 OAL 2.2441 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC62412
Delivery date: 3-5 days
$27.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Ball Milling, Side Milling, Ball Slot Milling, Profile Milling, Copy Milling
Package Size 1
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.236 x 0.236 x 0.630 x 2.244
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.2362 6.00MM
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Helix Angle 45°
Length Type Standard
Flutes/Inserts 2
Inch/Metric Metric
Cutter Dia 0.2362 6.00MM
Length Of Cut 0.6300 16.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
