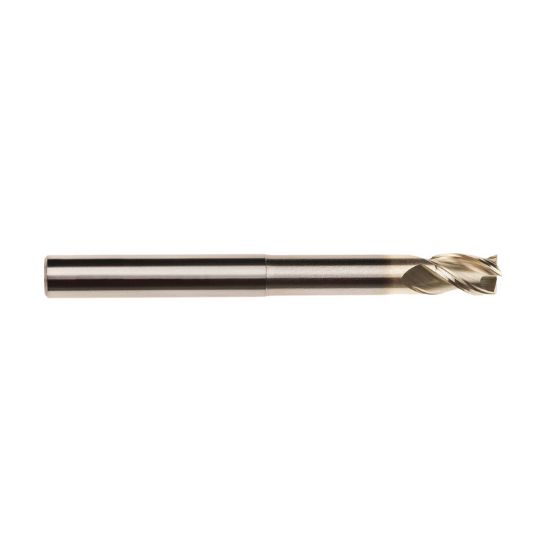

IMCO 62051 DIA 12MM SH 0.4724 LOC 0.7087 OAL 4.9213 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC62051
Delivery date: 3-5 days
$118.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Shipping State Ohio
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Inch/Metric Metric
Length Type Standard / With Neck
Helix Angle 45°
Cutter Dia 0.4724 12.00MM
Overall Len 4.9213 125.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Shank/Pilot Dia 0.4724 12.00MM
Dimension Description 0.472 x 0.472 x 0.709 x 4.921 LBS = 2.441
Corner Radius 0.0787 2.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.7087 18.00MM
Neck Length 2.4409 62.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
