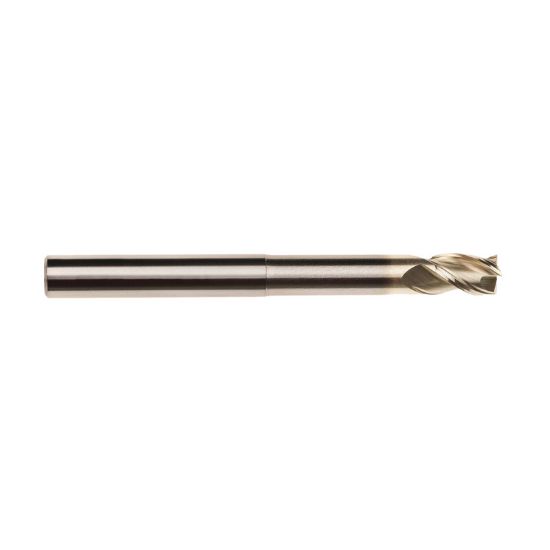

IMCO 62027 DIA 12MM SH 0.4724 LOC 0.7087 OAL 4.9213 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC62027
Delivery date: 3-5 days
$115.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Slot Milling, Side Milling, Face Milling
Shipping State Ohio
Made In USA Yes
Package Size 1
Dimensional Specifications
Cutter Dia 0.4724 12.00MM
Overall Len 4.9213 125.00MM
Flutes/Inserts 3
End Of Tool Shape Square
Length Type Standard / With Neck
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Inch/Metric Metric
Helix Angle 45°
Neck Length 2.4409 62.00MM
Single/Double End Single End
Dimension Description 0.472 x 0.472 x 0.709 x 4.921 LBS = 2.441
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.7087 18.00MM
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
