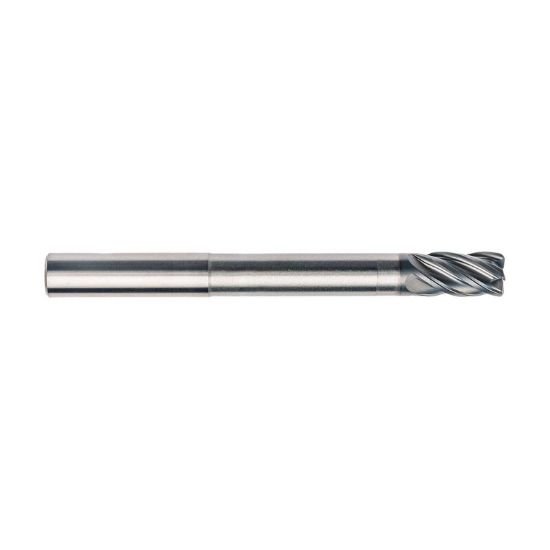

Picture of Imco 61842 Dia 10mm SH 0.3937 LOC 0.5906 OAL3.9370 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0787 2.00mm Pow-R-Path Mill

Imco 61842 Dia 10mm SH 0.3937 LOC 0.5906 OAL3.9370 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0787 2.00mm Pow-R-Path Mill

Part Number: IMC61842 0.394 x 0.394 x 0.591 x 3.937 LBS = 2.047

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1232005
Vendor: Sussex Tool and Supply
$225.48
IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.0787 2.00MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating TAC
Mach Side Connection Size 0.3937 10.00MM
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 5
Tool Dia 0.3937 10.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.5906 15.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0787 2.00MM
Inch/Metric Metric
Helix Angle 35
Center Cutting Center Cutting
Neck Length 2.0472 52.00MM
