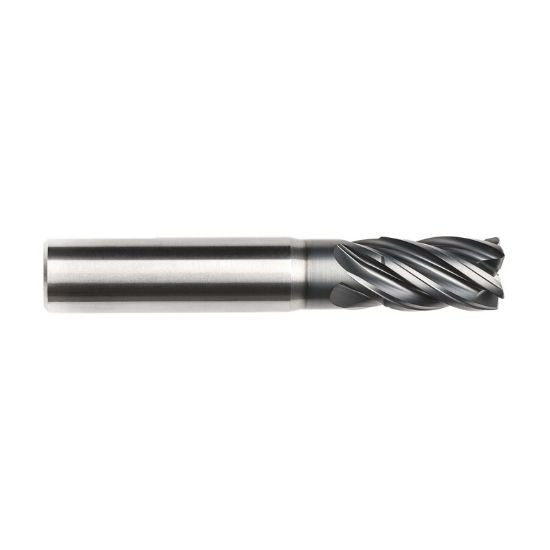

Picture of Imco 61829 Dia 8mm SH 0.3150 LOC 0.4724 OAL2.9528 End Mill Standard Flute Standard Helix Carbide TAC Single End Square Sharp Pow-R-Path Mill

Imco 61829 Dia 8mm SH 0.3150 LOC 0.4724 OAL2.9528 End Mill Standard Flute Standard Helix Carbide TAC Single End Square Sharp Pow-R-Path Mill

Part Number: IMC61829 0.315 x 0.315 x 0.472 x 2.953 LBS = 1.339
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231992
Vendor: Sussex Tool and Supply
$145.99

Description

IMCO Standard Helix End Mill Carbide TAC Square Sharp Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.9528 75.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 5
Tool Dia 0.3150 8.00MM
Length Of Cut 0.4724 12.00MM
Neck Length 1.3386 34.00MM
Geometry & Angles
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
