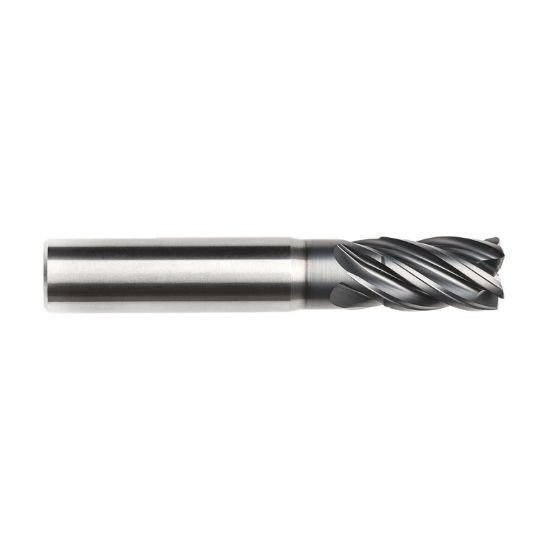

Picture of Imco 61822 Dia 6mm SH 0.2362 LOC 0.3543 OAL2.4803 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0197 0.50mm Pow-R-Path Mill

Imco 61822 Dia 6mm SH 0.2362 LOC 0.3543 OAL2.4803 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0197 0.50mm Pow-R-Path Mill

Part Number: IMC61822 0.236 x 0.236 x 0.354 x 2.480 LBS = 1.024
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$73.15
SKU: 1231985

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.0197 0.50MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.4803 63.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 5
Tool Dia 0.2362 6.00MM
Length Of Cut 0.3543 9.00MM
Neck Length 1.0236 26.00MM
Geometry & Angles
Corner Radius 0.0197 0.50MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
