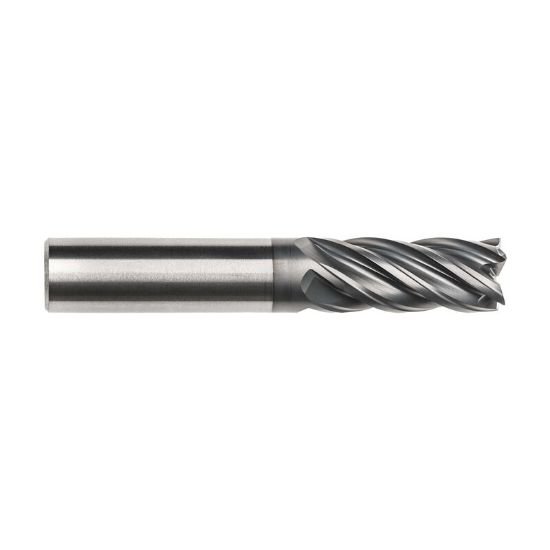

Picture of Imco 61742 Dia 12mm SH 0.4724 LOC 0.9449 OAL2.9528 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0591 1.50mm Pow-R-Path Mill

Imco 61742 Dia 12mm SH 0.4724 LOC 0.9449 OAL2.9528 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0591 1.50mm Pow-R-Path Mill

Part Number: IMC61742 0.472 x 0.472 x 0.945 x 2.953
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231905
Vendor: Sussex Tool and Supply
$122.75

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.0591 1.50MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.9528 75.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 5
Tool Dia 0.4724 12.00MM
Length Of Cut 0.9449 24.00MM
Geometry & Angles
Corner Radius 0.0591 1.50MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
