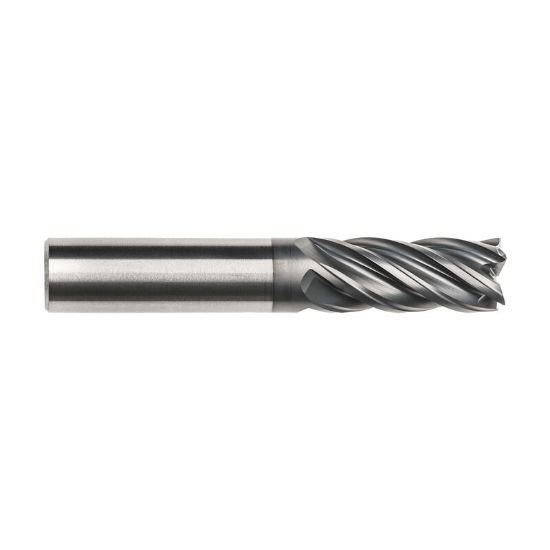

Picture of Imco 61739 Dia 12mm SH 0.4724 LOC 0.9449 OAL2.9528 End Mill Standard Flute Standard Helix Carbide TAC Single End Square Sharp Pow-R-Path Mill

Imco 61739 Dia 12mm SH 0.4724 LOC 0.9449 OAL2.9528 End Mill Standard Flute Standard Helix Carbide TAC Single End Square Sharp Pow-R-Path Mill

Part Number: IMC61739 0.472 x 0.472 x 0.945 x 2.953

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1231902
Vendor: Sussex Tool and Supply
$147.43
IMCO Standard Helix End Mill Carbide TAC Square Sharp Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating TAC
Mach Side Connection Size 0.4724 12.00MM
Overall Length 2.9528 75.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 5
Tool Dia 0.4724 12.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.9449 24.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 35
Center Cutting Center Cutting
