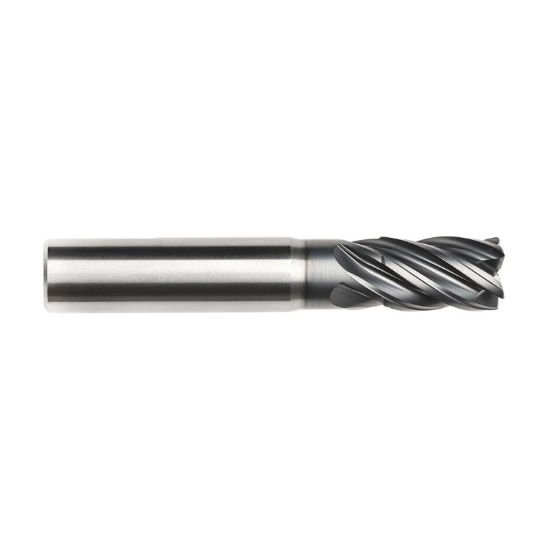

Picture of Imco 61671 Dia 3/4 SH 0.7500 LOC 1.1250 OAL4.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0600 1.52mm Pow-R-Path Mill

Imco 61671 Dia 3/4 SH 0.7500 LOC 1.1250 OAL4.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0600 1.52mm Pow-R-Path Mill

Part Number: IMC61671 0.750 x 0.750 x 1.125 x 4.000 LBS = 1.625
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$369.47
SKU: 1231836

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.0600 1.52MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.1250 28.58MM
Neck Length 1.6250 41.28MM
Geometry & Angles
Corner Radius 0.0600 1.52MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
