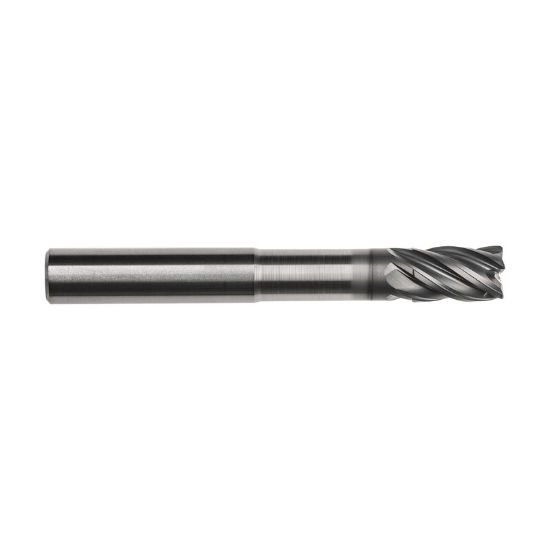

Picture of Imco 61665 Dia 5/8 SH 0.6250 LOC 0.9375 OAL5.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.1250 3.18mm Pow-R-Path Mill

Imco 61665 Dia 5/8 SH 0.6250 LOC 0.9375 OAL5.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.1250 3.18mm Pow-R-Path Mill

Part Number: IMC61665 0.625 x 0.625 x 0.938 x 5.000 LBS = 2.188
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231830
Vendor: Sussex Tool and Supply
$346.45

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.1250 3.18MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.9375 23.81MM
Neck Length 2.1870 55.55MM
Geometry & Angles
Corner Radius 0.1250 3.18MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
