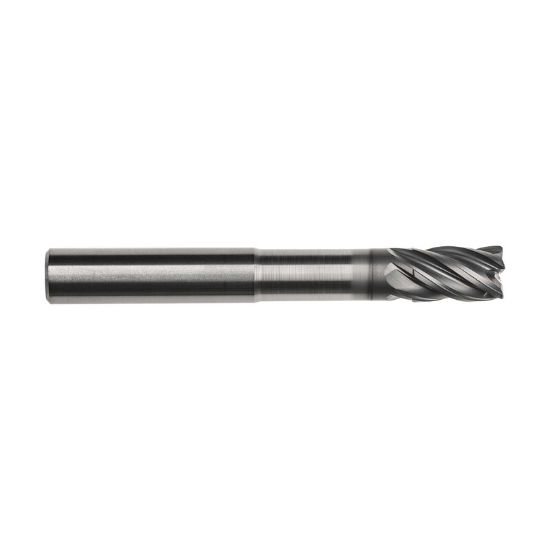

Picture of Imco 61639 Dia 1/2 SH 0.50 LOC 0.7500 OAL4.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Square Sharp Pow-R-Path Mill

Imco 61639 Dia 1/2 SH 0.50 LOC 0.7500 OAL4.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Square Sharp Pow-R-Path Mill

Part Number: IMC61639 0.500 x 0.500 x 0.750 x 4.000 LBS = 2.125
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231804
Vendor: Sussex Tool and Supply
$200.18

Description

IMCO Standard Helix End Mill Carbide TAC Square Sharp Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 5
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.7500 19.05MM
Neck Length 2.1250 53.98MM
Geometry & Angles
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
