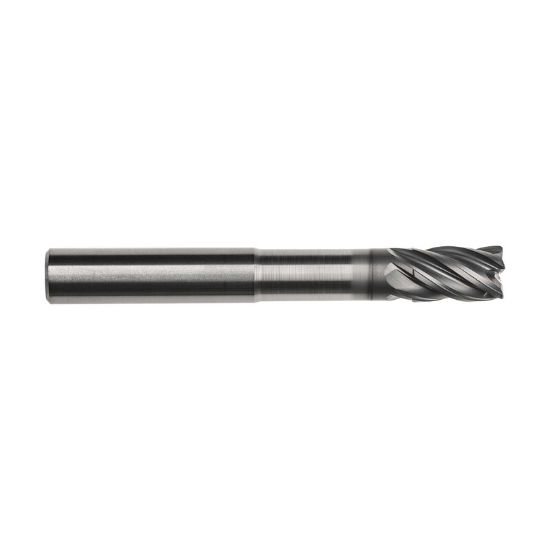

Picture of Imco 61628 Dia 3/8 SH 0.3750 LOC 0.5625 OAL3.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0600 1.52mm Pow-R-Path Mill

Imco 61628 Dia 3/8 SH 0.3750 LOC 0.5625 OAL3.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0600 1.52mm Pow-R-Path Mill

Part Number: IMC61628 0.375 x 0.375 x 0.563 x 3.000 LBS = 1.125
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231793
Vendor: Sussex Tool and Supply
$123.76

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.0600 1.52MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 5
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.5625 14.29MM
Neck Length 1.1250 28.58MM
Geometry & Angles
Corner Radius 0.0600 1.52MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
