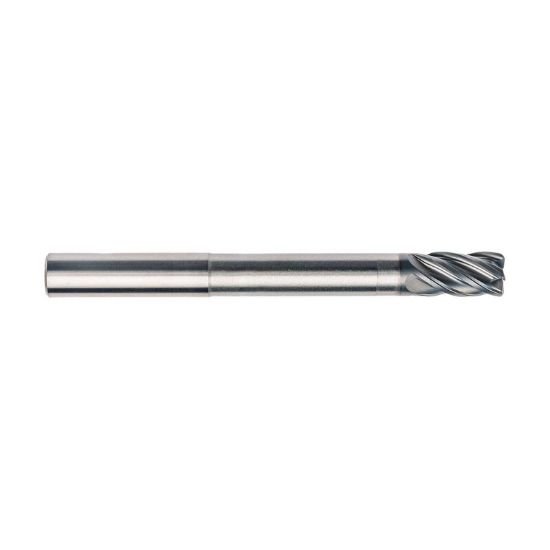

Picture of Imco 61619 Dia 1/4 SH 0.2500 LOC 0.3750 OAL4.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0300 0.76mm Pow-R-Path Mill

Imco 61619 Dia 1/4 SH 0.2500 LOC 0.3750 OAL4.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0300 0.76mm Pow-R-Path Mill

Part Number: IMC61619 0.250 x 0.250 x 0.375 x 4.000 LBS = 2.250
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$126.97
SKU: 1231784

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.0300 0.76MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 5
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.3750 9.53MM
Neck Length 2.2500 57.15MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
