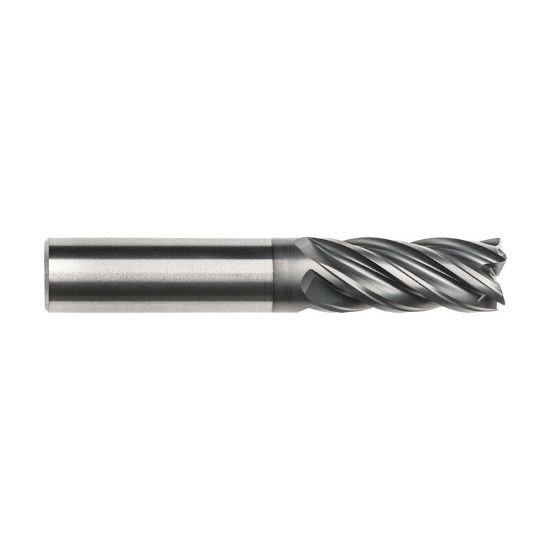

Picture of Imco 61557 Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.1870 4.75mm Pow-R-Path Mill

Imco 61557 Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.1870 4.75mm Pow-R-Path Mill

Part Number: IMC61557 0.625 x 0.625 x 1.250 x 3.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231722
Vendor: Sussex Tool and Supply
$241.48

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.1870 4.75MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.2500 31.75MM
Geometry & Angles
Corner Radius 0.1870 4.75MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
