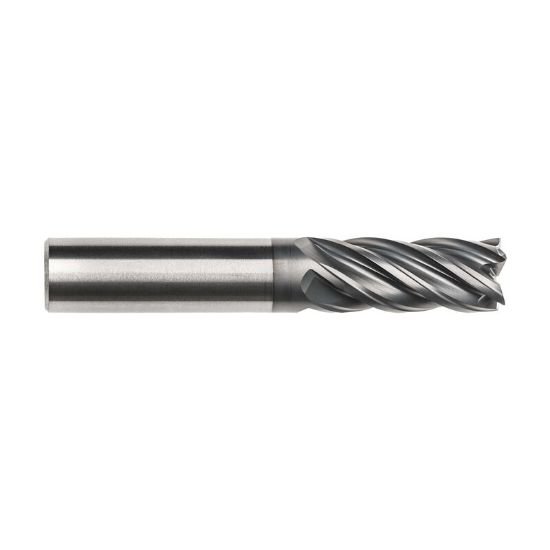

Picture of Imco 61527 Dia 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0600 1.52mm Pow-R-Path Mill

Imco 61527 Dia 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0600 1.52mm Pow-R-Path Mill

Part Number: IMC61527 0.500 x 0.500 x 1.000 x 3.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231692
Vendor: Sussex Tool and Supply
$123.05

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.0600 1.52MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 5
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.0000 25.40MM
Geometry & Angles
Corner Radius 0.0600 1.52MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
