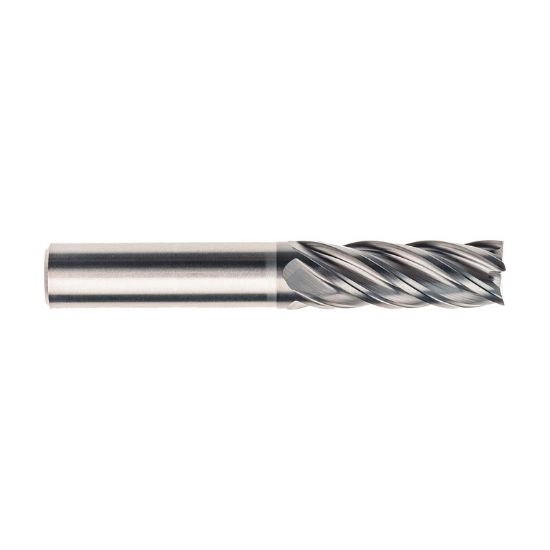

IMCO 61504 DIA 1/4 SH 0.2500 LOC 0.7500 OAL 2.50 End Mill Standard Flute Standard Helix Carbide TAC Single End Square Sharp Pow-R-Path Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61504
Delivery date: 3-5 days
$72.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.

Products specifications
Attribute name Attribute value
General Product Information
Coating TAC
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 5
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Length Type Standard
Length Of Cut 0.7500 19.05MM
Helix Angle 35°
Single/Double End Single End
Dimension Description 0.250 x 0.250 x 0.750 x 2.500
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Mold Yes
Aerospace Yes
Job Shop Yes
